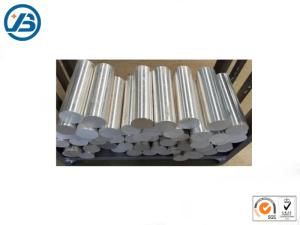

Dim 50 - 800mmPure Magnesium Alloy Extruded Bar / Rod For Aerospace
Details:
Name: magnesium alloy bar,dissolvable magnesium bar.
Magnesium alloy rods have a diameter of 70 - 800mm and can use the most advanced low-pressure casting technology in China to produce three-dimensional extruded rods with a diameter of 60mm and a length of 500mm
| Hilbo Magnesium Alloy Material Co., Ltd. |
| TEL:86-769- 81288286 FAX:86-769- 82385085 Website: www.magnesiumalloyplate.com |
| Address:No.1 West street Zhongnan North Road,Shang sha Community Chang'An Town,Dong guan City, China |
| Quality Inspection Report |
AZ31B Magnesium alloy rod
Diameter 10mm-130mm | Chemical Component | AL | Zn | Mn | Fe | Si | Ni | Cu | BE | Mg |
| 3.020 | 0.9800 | 0.2700 | 0.0029 | 0.0200 | 0.0005 | 0.0021 | - | Blacne |
Tensile strength
Mpa | Elongation strength
Rp0.2/Mpa | Elongation after breaking
A/% | Conclusion :Passed inspection |
| 220 | 140 | 7% |
| Color | silver |
| Shape | Round , bar, rod |
| Chemical composition | Mg,Al,Si,Mn,Zn |
| Material | magnesium alloy |
| Features | high specific strength,Lightest metal |
| Size | customization(diameter:60mm-800mm) |
Application
Carving, aerospace, concrete tools, 3C (cell phone / camera / compute), water heater, refrigerator, gas pipelines etc.
Product Advantages:
- Dissolves even at minimal electrolyte concentrations (from 1%) and any temperature.
- The degradation by-product is a fine powder that does not interfere with production.
- Any size available.
Performance test data:
| No. | Model | Test condition | Dissolution rate
mg/(cm2*h)) | Strength of extension(MPa) | Yield strength(MPa) | Elongation
(%) | Hardness
(HB) |
| 1 | HB006 | 93℃/3%KCl | 50-70 | ≥370 | ≥260 | ≥2.5 | ≥90 |
| 2 | HB006A | 93℃/3%KCl | 50-70 | ≥310 | ≥220 | ≥6.0 | ≥75 |
| 3 | HB008 | 93℃/3%KCl | 40-60 | ≥400 | ≥300 | ≥4.0 | ≥100 |
| 4 | HB008B | 93℃/3%KCl | 40-60 | ≥370 | ≥270 | ≥5 | ≥100 |
| 5 | HB008C | 93℃/3%KCl | 40-60 | ≥310 | ≥220 | ≥15 | ≥85 |
| 6 | HB012 | 93℃/3%KCl | 40-60 | ≥400 | ≥300 | ≥3.0 | ≥100 |
| 7 | HB011 | 93℃/3%KCl | 15-35 | ≥420 | ≥300 | ≥3.0 | ≥100 |
| 8 | HB016 | 93℃/3%KCl | 35-55 | ≥280 | ≥180 | ≥15 | ≥60 |
| 9 | HB017 | 93℃/3%KCl | 40-50 | ≥200 | ≥140 | ≥17 | ≥55 |
| 10 | HB018K | 50℃/0.84KCl | 50-70 | ≥240 | ≥170 | ≥12 | ≥55 |
| 11 | HB018 | 50℃/0.84KCl | 30-50 | ≥230 | ≥170 | ≥12 | ≥55 |
| 12 | HB010 | 93℃/3%KCl | 15-35 | ≥190 | ≥120 | ≥30 | ≥45 |
| 13 | HB022 | 43℃/0.05%KCl | 50-60 | ≥300 | ≥200 | ≥5.0 | ≥75 |
| 14 | HB023 | 43℃/0.05%KCl | 20-40 | ≥280 | ≥200 | ≥7.5 | ≥65 |
| 15 | HB024 | 43℃/0.05%KCl | 50-70 | ≥260 | ≥220 | ≥5 | ≥60 |
| 16 | HB013A | 43℃/0.05%KCl | 80-100 | ≥260 | ≥230 | ≥3.5 | ≥75 |
| 17 | HB025 | 50℃/0.84%KCl | 90-110 | ≥275 | ≥200 | ≥12 | ≥65 |
| 18 | HB026 | 93℃/3%KCl | 20-40 | ≥450 | ≥350 | ≥3.0 | ≥110 |
| 19 | HB808 | 50℃/0.84%KCl | 50-70 | ≥370 | ≥260 | ≥3.0 | ≥100 |
| 20 | HB019 | 50℃/0.84KCl | 45-65 | ≥230 | ≥180 | ≥12.0 | ≥55 |
| 21 | HB055 | 93℃/3%KCl | 130-150 | ≥220 | ≥160 | ≥12.0 | ≥55 |
| 22 | HB035 | 93℃/3%KCl | 50-100 | ≥100 | ≥60 | ≥42.0 | ≥35 |
| 23 | HBMM6 | 50℃/0.84%KCl | 70-100 | ≥260 | ≥230 | ≥10.0 | ≥60 |
| 24 | HBMM7 | 50℃/0.84%KCl | 90-120 | ≥270 | ≥240 | ≥9.0 | ≥65 |
| 25 | HBMM8 | 93℃/3%KCl | 100-150 | ≥280 | ≥250 | ≥5.0 | ≥65 |
Advantage of Hilbo Company:
Full range of product types, Ensure production capacity
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Cost advantage
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
Workshop:
Product technology advantages
Engaged in magnesium smelting technology personnel with more than 15 years experience, from the selection of primary materials to smelting processing has a wealth of experience and mature management techniques.
We are in magnesium ingots, magnesium alloy extrusion products have technical research and development capabilities. We are come out in front in the Magnesium alloy production enterprises
Testing Equipment
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
Certificate:
We have attained ISO9001 and ISO14001 certificates, Standardize and improve the enterprise quality management system.
FAQ:
Q1: Are you a manufacture or trading company?
A: We are a manufacture .
Q2. How about your delivery time?
A: It will take 5 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance against the copy of BL. We'll show you the photos of the products and packages before you pay the balance.
Q4. Can you produce according to the samples?
A: Yes, samples are available for you to check our quality, sample delivery time will be 1-10 days.
Q5. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q6: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but customers have to pay the the courier cost.
Q7: What if there is some quality problem?
Please rest assured that we will be responsible for the products in the end
